Vibration Motors - Briquette Series
KVM-P Series
0 - 6000rpm 0-100 Hz high-frequency UNI KVM/P Series vibration motors are used in briquette machines. UNI KVM/P Series Vibration Motors have ATEX II 2D Ext b IIIC T 120C Db and IP66 certificates for applications in hazardous environments with flammable and explosive dust. High-frequency electric vibrators used on construction sites allow you to achieve the best results in product compaction.
Scope of application |
• It is recommended to have a high-density reinforcement inside the enclosure for vibration applied from the outside of the concrete. |
Technicial Specifications |
• Multi-voltage |
Advantages |
• Easy to use |
Certificates |
• ISO |
Industries |
• Building and Construction Sector |
II 2D Ex tb IIIC T 120° C Db - IP 66
| Type | Size | rpm | Centrifugal Force (Kg) | Centrifugal Force (Kn) | Weight (Kg) | Input Power (V) | Nom. Current (A) 42V | Nom. Current (A) 380V |
|---|---|---|---|---|---|---|---|---|
| KVM-60-04-P01 | 04-a | 0/100 | 2000 | 19,620 | 38 | 1800 | 27,6 | 2,90 |
| KVM-60-05-P01 | 05-a | 0/100 | 2500 | 24,525 | 43 | 2200 | 32 | 3,50 |
(*) Working moment = 2x static moment

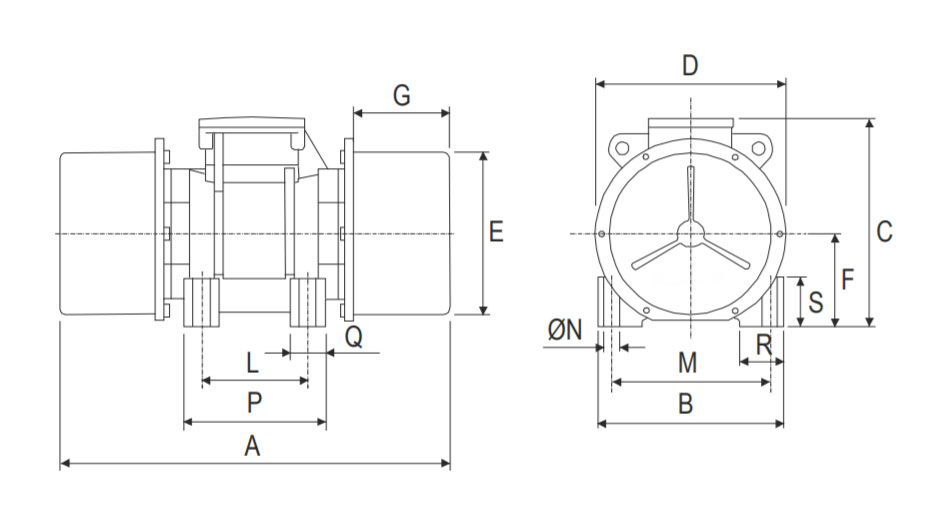

| Overall | Dimensions | (mm) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Size | Rif | A | B | C | D | ØE | F | G | L | M | ØN | P | Q | R | S |
| KVM-60-04-P01 | 04-a | -- | 405 | 210 | 237 | 215 | 182 | 104 | 92 | 120 | 170 | 17 | 160 | 40 | 50 | 53,5 |
| KVM-60-05-P01 | 05-a | -- | 426 | 235,5 | 259 | 258 | 221 | 117 | 84 | 140÷150 | 190 | 18,5 | 194 | 50 | 51 | 56 |
