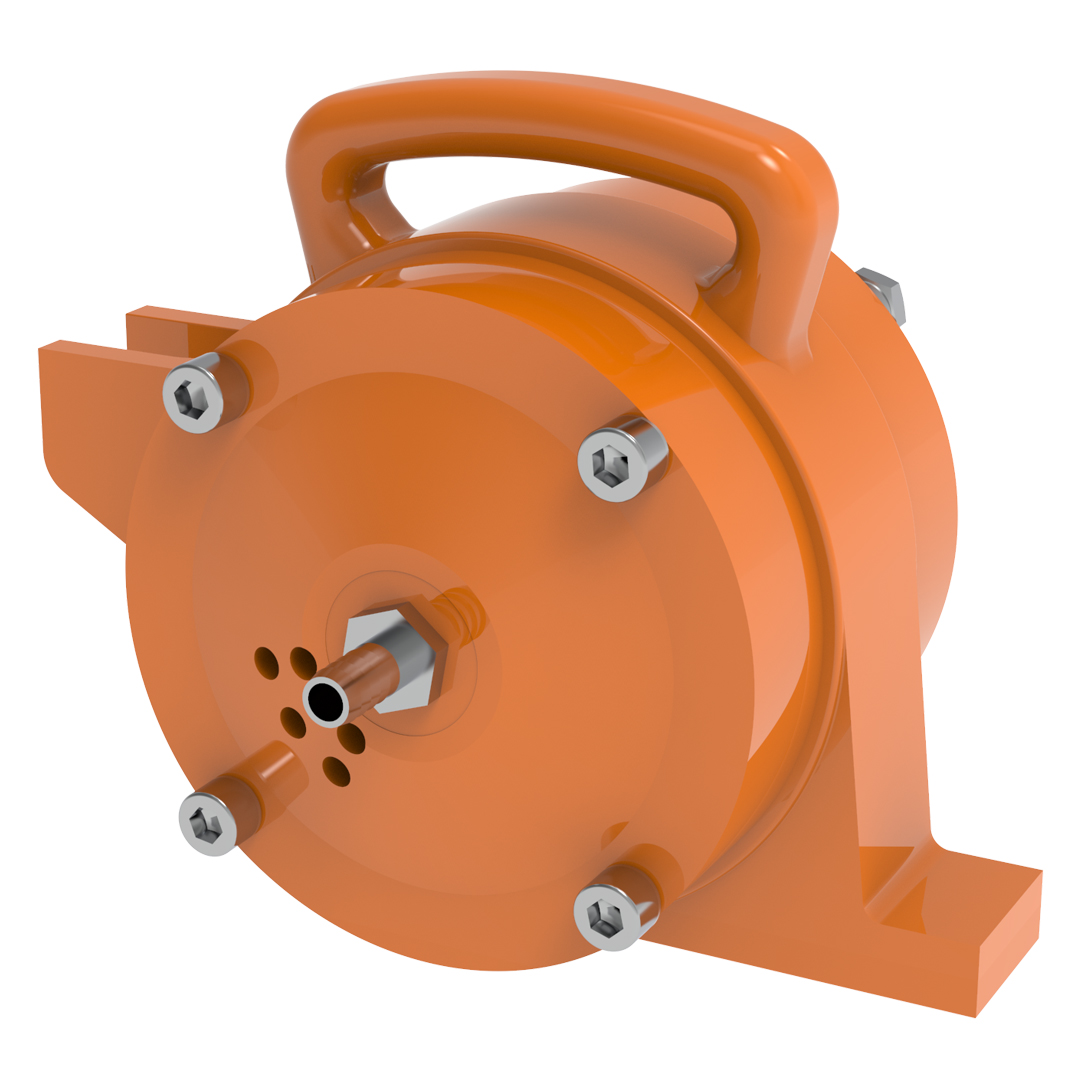

Air Concrete Mold Vibration Motors

KVM/HV Series

It is attached to various concrete molds. It enables the concrete mortar to settle with the vibration it makes and prevents the gaps that may occur in the concrete. The sheet metal is tied to the bunkers. Thus, it provides continuity in the flow of the goods in the bunker. It is used in screening plants that prepare sand, gravel and aggregate materials. High-frequency UNI KVM-HV pneumatic vibration motors, used both in prefabrication facilities and on construction sites, allow you to achieve the best results in concrete compaction when it is not possible or dangerous to use electrical systems.
uni-construction-vibration-motors-kvm-hv

Scope of application

• It is recommended to have a high-density reinforcement inside the enclosure for vibration applied from the outside of the concrete.
• Partition walls, columns, beams, which are the structural elements to be vibrated, are high or narrow, so it is difficult and impossible to vibrate with internal vibration systems.

Technicial Specifications

In air vibration motors, it creates a circular vibration that operates between 0 and 17,000 rpm and thus spreads in all directions.
• Working pressure: 4.9 - 6.9 PSI
• Quality of air supply: class 5.4.4
• Operating temperature: -10 ° C / +60 ° C
• It is recommended to use a pneumatic lubricator in the system.

Advantages

• Easy to use
• Ease of Installation

Certificates

• ISO
• CE

Accessories

• Air flow hose in different lengths
• Bracket (fixing foot)

Industries

• Building and Construction Industry

3Ph 42V 200 Hz 40A

TypeOutter
Diameter
INCH		Outter
Diameter
mm		Weight
LBS		Weight
Kg
Compressedair
PSI		Compressedair
BAR		Compressedair
CFM 		Compressedair
m³/dk		Frekans
Kg		Frekans
Hz		Frekans
VIBR.min
KVM-HV-64,6511813,2671
100		4,9
6,9		35,31
40,61		1,00
1,15		917,7
150
180
9.000
10.800
KVM-HV-85,8214817,6871
100		4,9
6,9		40,61
45,90
1,15
1,30		1.223,6
150
180
9.000
10.800
KVM-HV-105,82148221071
100		4,9
6,9		45,90
51,20		1,30
1,45		1.529,5
150
180
9.000
10.800
KVM-HV-146,3016030,81471
100		4,9
6,9		51,20
58,27		1,45
1,65
2.855,2150
180
9.000
10.800
KVM-HV-166,6118635,21671
100		4,9
6,9		56,50
63,56
1,60
1,80		3.263,1150
180
9.000
10.800
KVM-HV-206,61186442071
100		4,9
6,9		60,03
67,09		1,70
1,90		4.078,8
150
180
9.000
10.800
KVM-HV-246,6118648,52271
100		4,9
6,9		63,93
71,45		1,70
1,90
6.346,7
150
180
9.000
10.800

(*) Working moment = 2x static moment

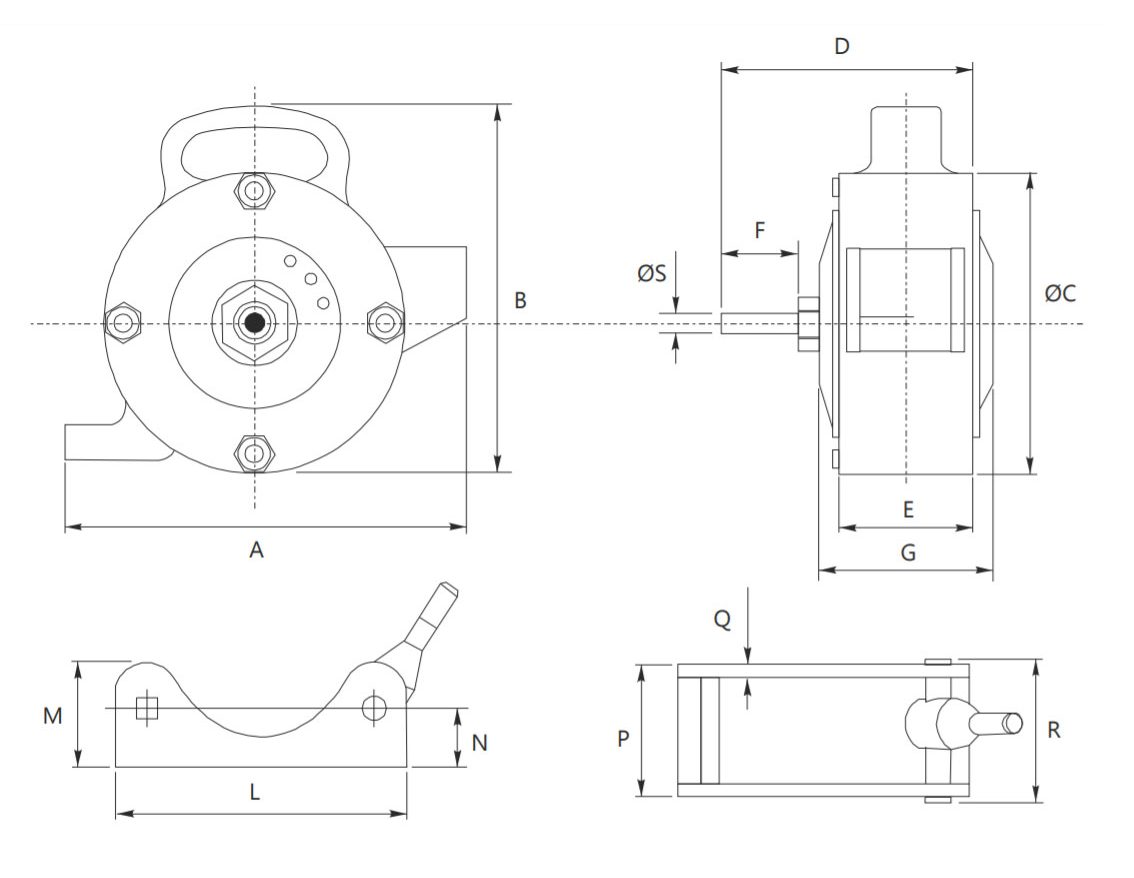

Overall Dimensions (mm)
TypeRifABØCDEFGLMNPQRØS
KVM-HV - 61203182145167894195228684863107220
KVM-HV - 81203182145167894195228684863107220
KVM-HV - 101203182145167894195228684863107220
KVM-HV - 141203182145167894195228684863107220
KVM-HV - 16122820316322112141147250835376108720
KVM-HV - 20122820316322112141147250835376108720
KVM-HV - 24122820316322112141147250835376108720
