KVM-M Series

UNI KVM-M Series Monophase Vibration Motors 2-Pole 3000rpm and 4-Pole 1500rpm, 50 Hz or 60 Hz operation option and monophase industrial power-producing power in the range of 0.15 kW - 0.50 kW providing centrifugal force between 28 kgf and 680 kgf are vibration motors. KVM-M Series Single Phase Vibration Motors have ATEX II 2D Ext b IIIC T 120C Db and IP66 certificates for applications in hazardous environments with flammable and explosive dust.

uni-industrial-vibration-motors-kvm-m

Scope of application	Vibrating machines in general, vibrating screens, vibrating conveyors and extractors, compaction tables, foundry ladles, fluidized beds, spiral elevators.
Technicial Specifications	• Centrifugal force 28 kgf to 680 kgf • 3000 rpm, 1500 rpm and 1000 rpm • Voltages 180 - 230 V
Advantages	• H class insulation • Mechanical protection IP 66 • Working ambient temperature from -30°C to +40°C • Universal foot connection dimensions • Reinforced strong foot design, aluminum alloy metal injection body • High-quality bearings • PTC (Optional) • Optional stainless steel covers • Anti-corrosion paint for “food” applications
Certificates	• ATEX Ex II3 D
Applications	• Concrete Compaction • Big Bag unloading • Big Bag filling • Big Bag compression • Circular vibrating screens • Decoration station • Cleaning the filters • Trucks and industrial vehicles • Parquet and block machines • Semolina purifier • Shale shakers • Vibrating floors for silos • Vibrating extractors for silos and hoppers • Silo transport vehicles • Vibrating tables for testing • Vibrating fluidized beds • Vibrating feeders • Vibratory excavators • Vibrating gravimetric separators • Vibrating grid feeders • Vibrating channels • Vibratory sorters • Vibrating spirals • Soil recovery strainer • Bagging machines • Vibro dryers • Vibropresses • Vibro scans
Industries	• Building and Construction Sector • Energy sector • Systems and Machines • Heavy Industry Sector • Feed Sector • Food industry • Plastics and Chemistry Sector • Environmental Technologies

2 poles 3000 -50Hz / 3600 -60Hz
4 poles 1500 -50Hz / 1800 -60Hz

Type	Size	II 2D Class	Centrifugal Force ( Kg/F )	Centrifugal Force ( Kg/F )	Centrifugal Force ( KN )	Centrifugal Force ( KN )	(*) Statical Moment (Kgmm)	(*) Statical Moment (Kgmm)	Weight ( Kg )	Weight ( Kg )	Input Power ( W )	Input Power ( W )	Nom. Current ( A )	Nom. Current ( A )	IA/IN	IA/IN
			50 Hz	60Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	220 V 50 Hz	115 V 60 Hz	50 Hz	60 Hz
KVM-30-01-M01	01	120°	52	53	0,511	0,520	4,9	3,7	4,3	3,8	150	110	0,46	0,92	2,30	2,70
KVM-30-01-M02	01	120°	78	71	0,748	0,697	6,1	4,9	4,5	4,4	180	150	0,68	1,35	2,50	2,90
KVM-30-01-M03	01	120°	165	132	1,601	1,295	15,2	9,1	4,7	4,5	200	160	0,73	1,46	3,30	3,30
KVM-30-01-M04	01	120°	228	220	2,299	2,158	21,3	15,2	5	4,7	220	160	0,73	1,46	3,30	3,30
KVM-30-02-M01	02	120°	325	290	3,153	2,845	29,9	20,0	8,5	8,1	300	300	1,15	2,80	3,50	3,60
KVM-30-02-M02	02	120°	460	434	4,444	4,258	40,0	30,0	9	8,6	380	450	1,70	3,50	3,50	3,50
KVM-30-03-M01	03-a	120°	680	679	6,475	6,661	65,6	46,9	15	12,2	510	500	2,10	4,50	4,00	4,00

(*) Working moment = 2x static moment

			Overall	Dimensions	(mm)
Type	Size	Rif	A	B	C	D	ØE	F	G	L	M	ØN	ØN	P	Q	R	S
KVM-30-01-M01	01	1	241	125	145	109	100	58	60,5	70÷74	106	8,75	4	90	23	23	23
KVM-30-01-M02	01	1	241	125	145	109	100	58	60,5	70÷74	106	8,75	4	90	23	23	23
KVM-30-01-M03	01	1	241	125	145	109	100	58	60,5	70÷74	106	8,75	4	90	23	23	23
KVM-30-01-M04	01	1	241	125	145	109	100	58	60,5	70÷74	106	8,75	4	90	23	23	23
KVM-30-02-M01	02	1	300	153	182	135	123	72	74,5	90	125	13.5	4	117	27	27	30
KVM-30-02-M02	02	1	300	153	182	135	123	72	74,5	90	125	13.5	4	117	27	27	30
KVM-30-03-M01	03-A	2	315	190	208	187	155	90,5	65	100÷105	140÷160	12	4	133	33	40	45

(*) Working moment = 2x static moment

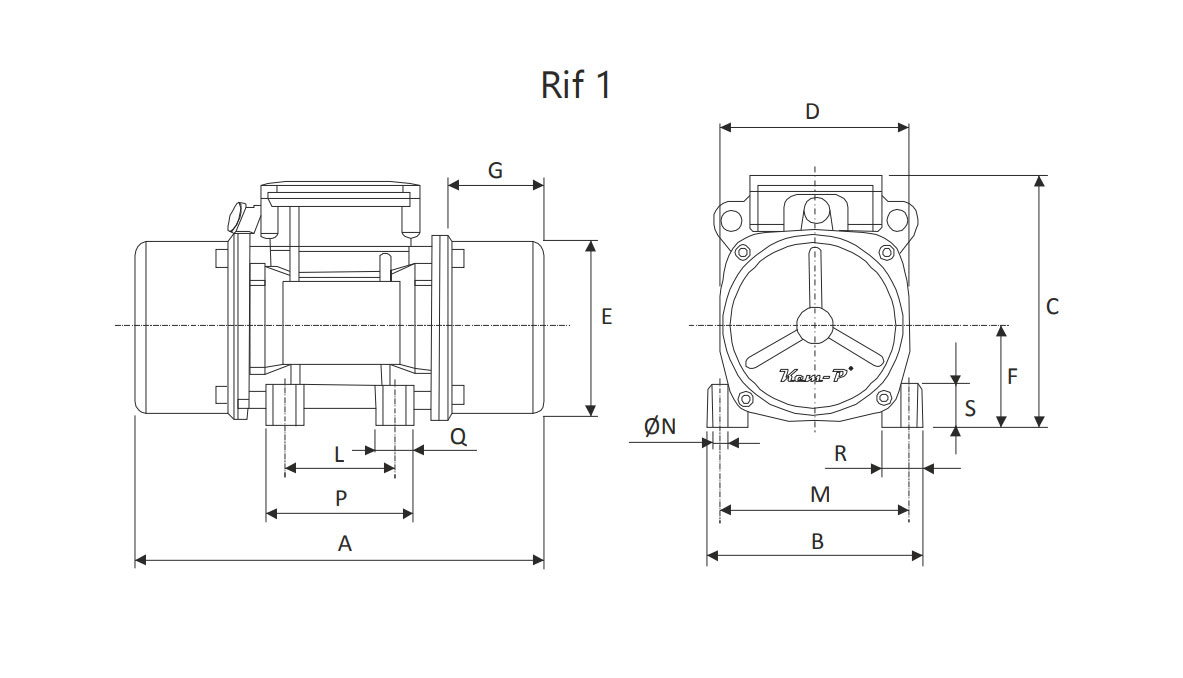

uni-industrial-vibration-motors-kvm-m-technical-drawing-1

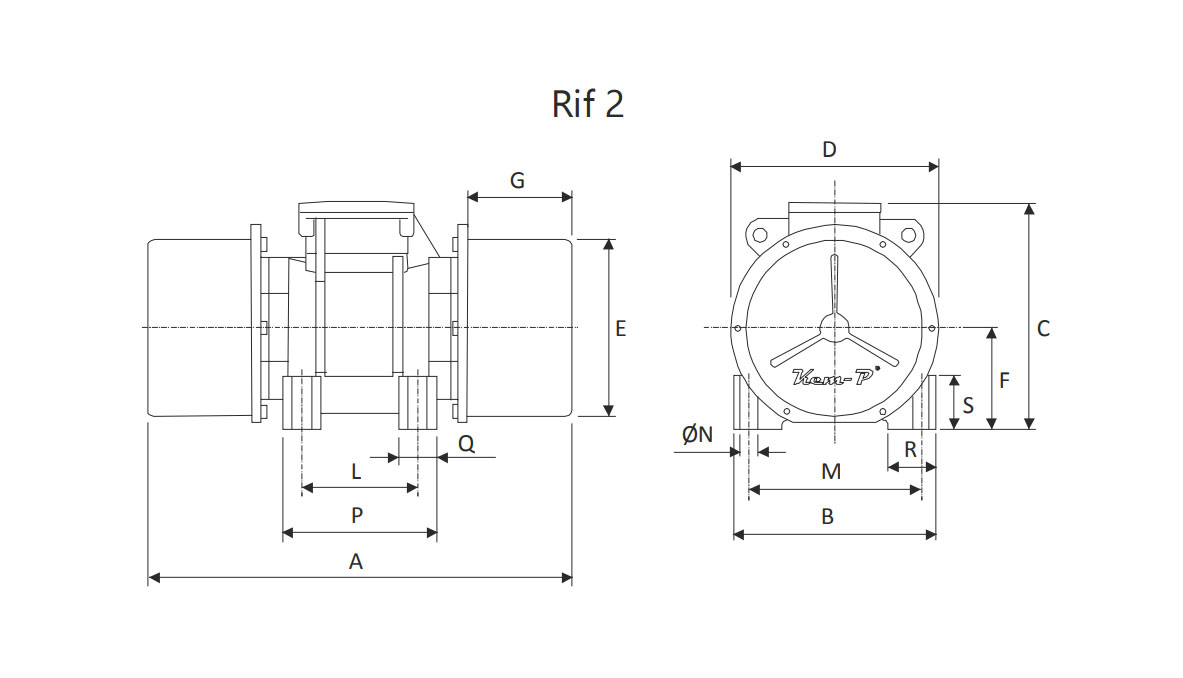

uni-industrial-vibration-motors-kvm-m-technical-drawing-2
