Flanged Vibration Motors

KVM-FVM Series

KVM/FU and KVM/FO Series Flanged Vibration motors are used for drying, washing, polishing, glazing, etc. They are industrial type flanged vibration motors used in sieves. 2 Poles 3000 rpm - 4 Poles 1500 rpm and 6 Poles 1000 rpm, 50 Hz or 60 Hz operation option and produces power in the range of 0.22 kW - 11.00 kW, providing centrifugal force between 175 kgf and 9000 kgf.

uni-industrial-vibration-motors-flansli-ustten-ortadan-kvm-fv

Scope of application	Vibrating machines in general. Vibrating screens, vibrating conveyors and compaction tables, foundry screens, fluidized beds, elevators
Technicial Specifications	• Centrifugal force: 175 kgf to 9,000 kgf • Voltages 12 - 24 DC 180 - 230 V 380 - 405/660-700 V AC
Advantages	• H class insulation • Mechanical protection IP 66 • Working ambient temperature from -30°C to +40°C • High-quality bearings • Universal flange connection dimensions • PTC (Optional) • Anti-corrosion paint for “food” applications
Certificates	• ATEX Ex II3 D
Applications	• Concrete compaction • Big Bag unloading • Big Bag filling • Big Bag compression • Circular vibrating screens • Decoration station • Cleaning the filters • Trucks and industrial vehicles • Parquet and block machines • Semolina purifier • Shale shakers • Vibrating floors for silos • Vibrating extractors for silos and hoppers • Silo transport vehicles • Vibrating tables for testing • Vibrating fluidized beds • Vibrating feeders • Vibratory excavators • Vibrating gravimetric separators • Vibrating Grate Feeders • Vibrating channels • Vibratory sorters • Vibrating spirals • Soil recovery strainer • Bagging machines • Vibro dryers • Vibropresses • Vibro Scans)
Industries	• Building and Construction Sector • Energy sector • Systems and Machines • Heavy Industry Sector • Feed Sector • Food industry • Plastics and Chemistry Sector • Environmental Technologies

II 2D Ex tb IIIB T 120°C Db - IP 66

Type	rpm	Centrifugal Force ( Kg/F )	Centrifugal Force ( Kg/F )	Centrifugal Force ( KN )	Centrifugal Force ( KN )	Weight (kg)	Weight (kg)	Input Power ( W )	Input Power ( W )	Nom. Current ( A )	Nom. Current ( A )	IA/IN	IA/IN
		50 Hz	60Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	400 V 50 Hz	460 V 60 Hz	50 Hz	60 Hz
KVM-15-01-FO1	1500	1306	1246	12,812	12,223	10	9	720	816	1,36	1,30	4,00	4,00
KVM-15-02-FO2	1500	2379	2356	23,338	23,112	13	12	1300	1400	2,30	2,10	4,90	4,90
KVM-30-02-FO2	3000	2285	2350	23,338	23,054	13	12	2200	2250	3,50	3,40	6,10	6,40

(*) Working moment = 2x static moment

uni-industrial-vibration-motors-flansli-ustten-ortadan-kvm-fv-technical-drawing-2

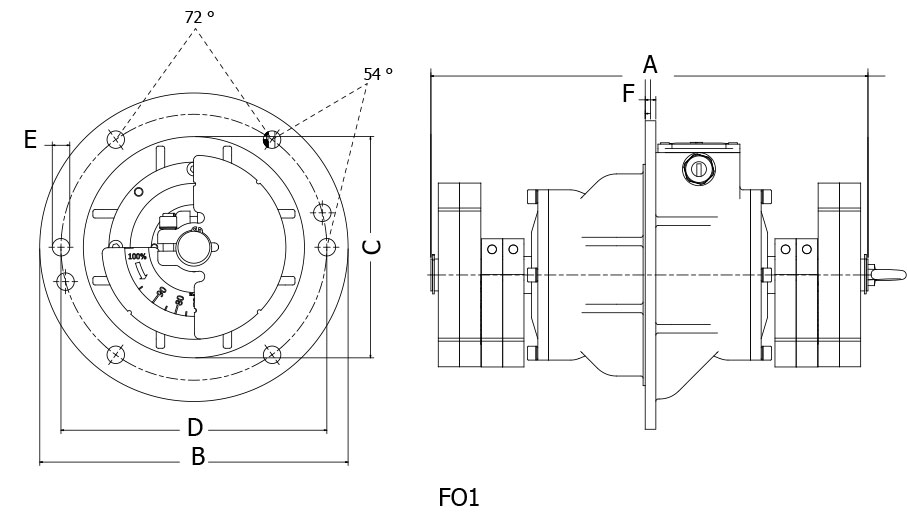

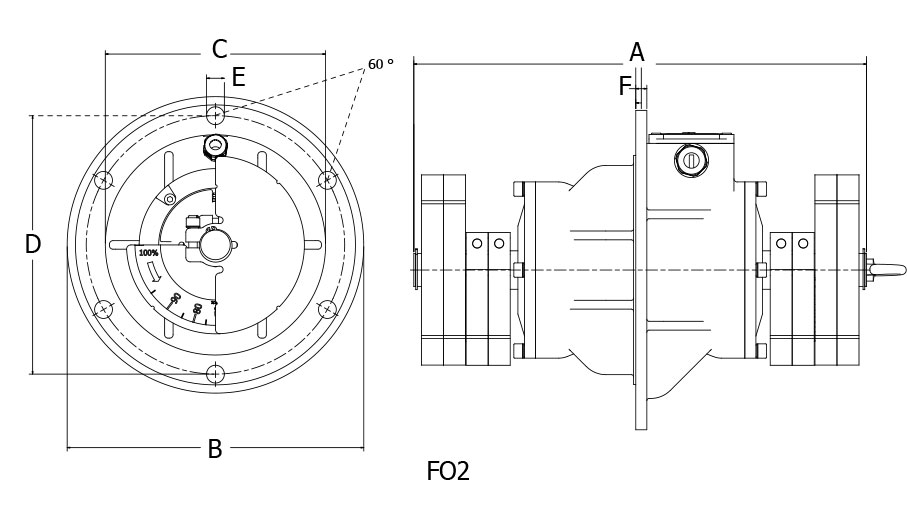

Type	A	ØB	ØC	ØD	ØE	F
KVM-15-01-FO1	411	290	208	250	16,5	10
KVM-15-02-FO2	480	350	260	280	21	18
KVM-30-02-FO2	480	350	260	280	21	18

Type	rpm	Centrifugal Force ( Kg/F )	Centrifugal Force ( Kg/F )	Centrifugal Force ( KN )	Centrifugal Force ( KN )	Weight (kg)	Weight (kg)	Input Power ( W )	Input Power ( W )	Nom. Current ( A )	Nom. Current ( A )	IA / IN	IA / IN
		50 Hz	60Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	400 V 50 Hz	460 V 60 Hz	50 Hz	60 Hz
KVM-30-02-FU1	3000	334	--	5,239	--	28	--	550	--	0,91	--	--	--

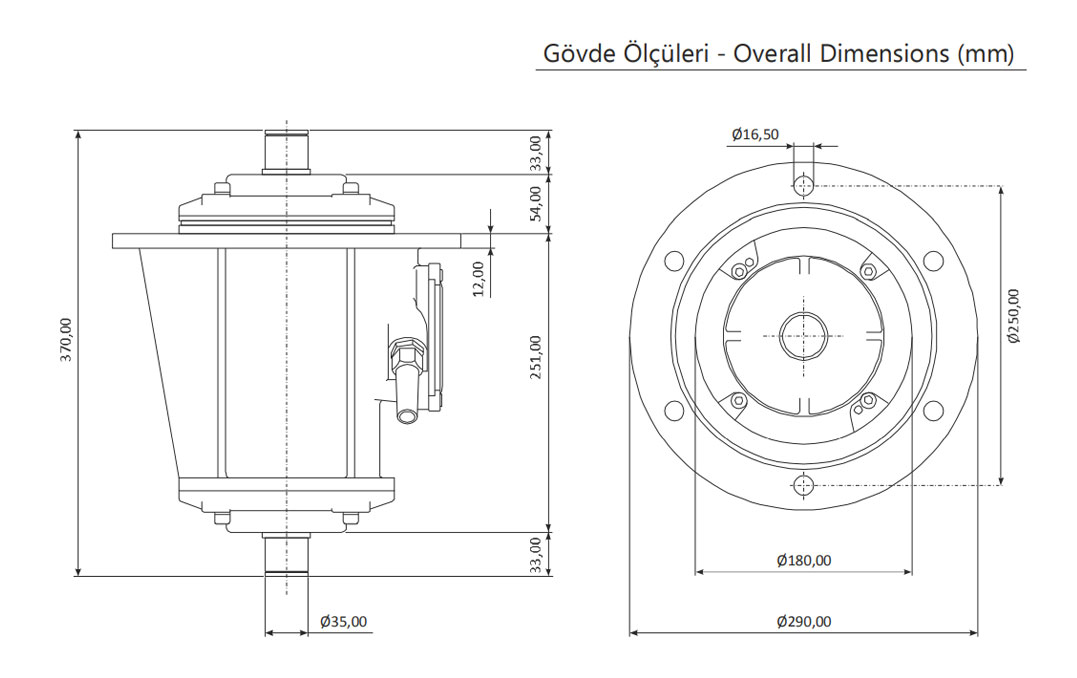

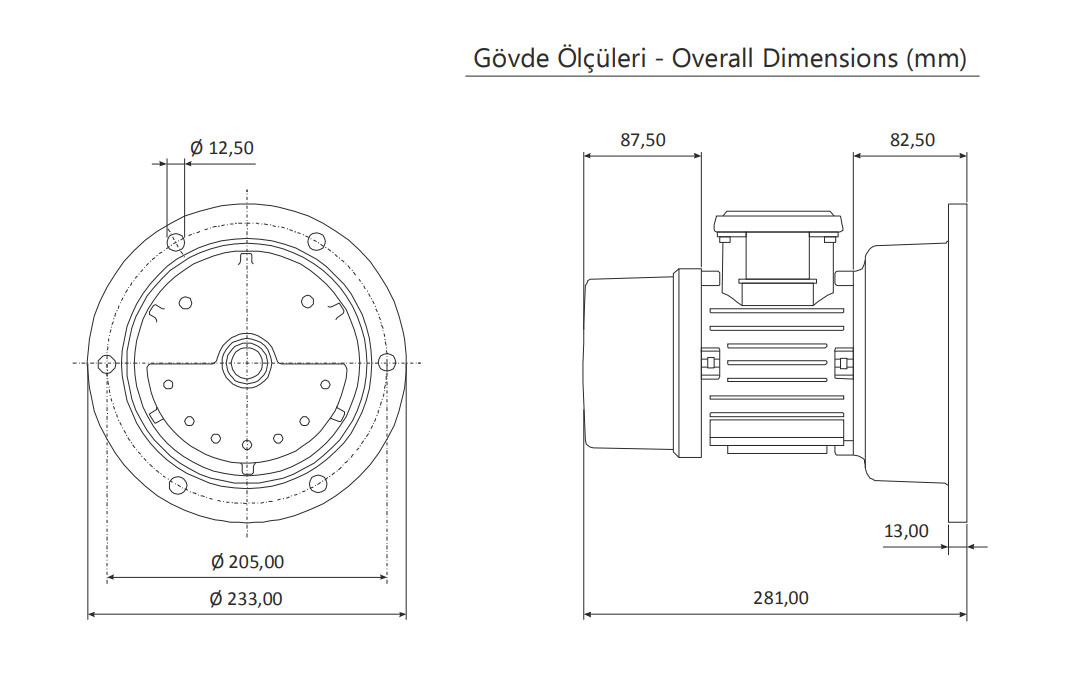

uni-industrial-vibration-motors-flansli-ustten-ortadan-kvm-fv-technical-drawing-3

Type	rpm	Centrifugal Force ( Kg/F )	Centrifugal Force ( Kg/F )	Centrifugal Force ( KN )	Centrifugal Force ( KN )	Weight (kg)	Weight (kg)	Input Power ( W )	Input Power ( W )	Nom. Current ( A )	Nom. Current ( A )	IA / IN	IA / IN
		50 Hz	60Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	400 V 50 Hz	460 V 60 Hz	50 Hz	60 Hz
KVM-10-03-FU2	1000	1300	1300	12,753	12,753	38	38	800	900	1,60	1,60	3,6	4,0
KVM-15-04-FU1	1500	1500	1500	14,715	14,715	38	38	1100	1200	2,20	2,20	4,4	4,8

Type	rpm	Centrifugal Force ( Kg/F )	Centrifugal Force ( Kg/F )	Centrifugal Force ( KN )	Centrifugal Force ( KN )	Weight (kg)	Weight (kg)	Input Power ( W )	Input Power ( W )	Nom. Current ( A )	Nom. Current ( A )	IA / IN	IA / IN
		50 Hz	60Hz	50 Hz	60 Hz	50 Hz	60 Hz	50 Hz	60 Hz	400 V 50 Hz	460 V 60 Hz	50 Hz	60 Hz
KVM-30-03-FU1	3000	1055	967	10,350	9,575	42	40	1300	1400	1,90	1,90	5,2	6,0
KVM-30-04-FU1	3000	1632	1300	15,900	12,753	45	43	1700	2000	3,10	2,90	4,6	5,6
KVM-15-03-FU1	1500	782	902	7,671	8,849	46	44	1000	1100	1,60	1,60	4,3	4,4
KVM-15-04-FU2	1500	1030	1200	10,104	11,772	50	47	1100	1200	2,50	2,00	4,4	4,7

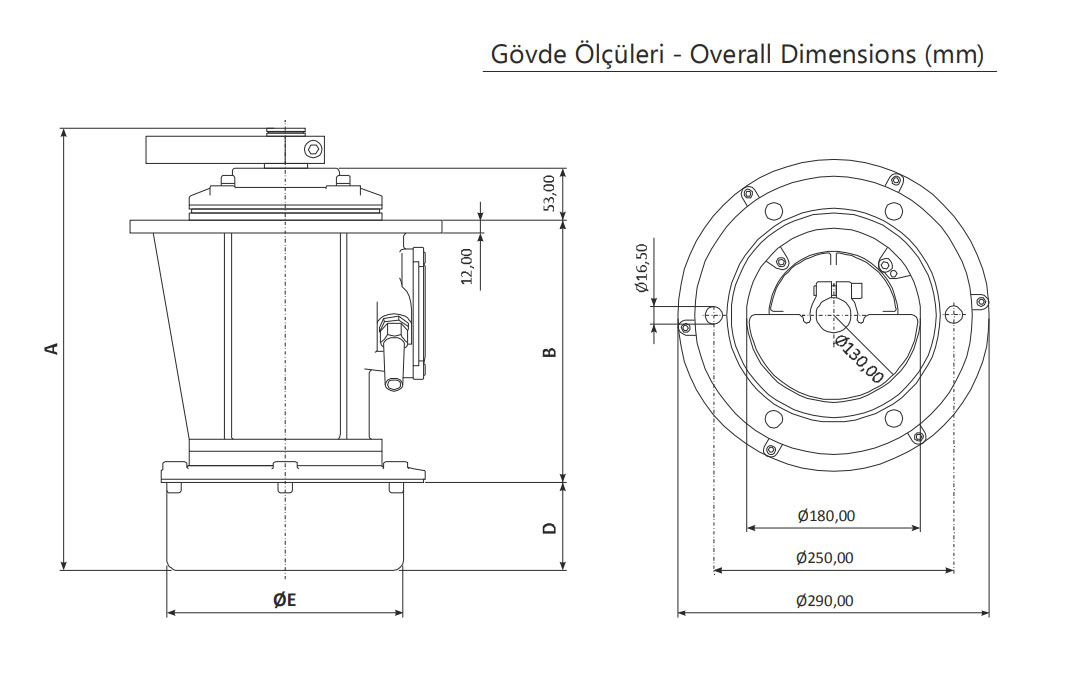

Type	A	B	ØE	D
KVM-30-03-FU1	414	242	221	84
KVM-30-04-FU1	455	242	221	84
KVM-15-03-FU1	414	242	221	84
KVM-15-04-FU2	455	244	283	110
